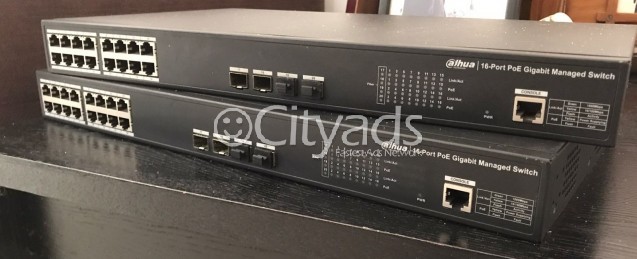

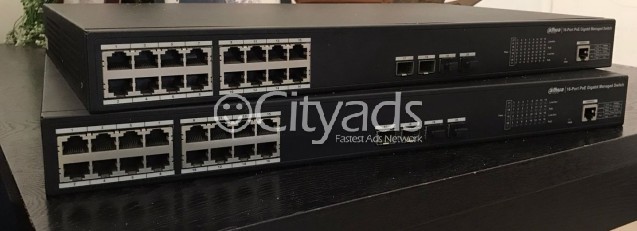

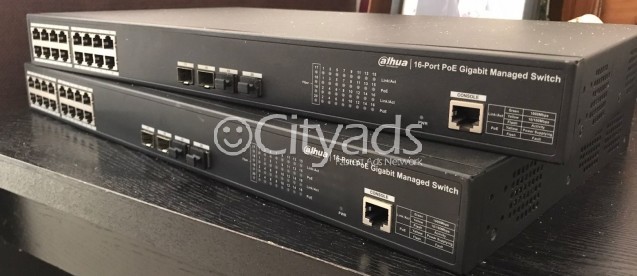

16-Port PoE Gigabit Managed Switch

PFS4420-16GT-250

16-Port PoE Gigabit Managed Switch

Checking Warranty Available

> Four SFP ports

> Two-layer network management PoE switch

> MAC auto study and aging, MAC address list capacity is 8K

> Support IEEE802.3af, IEEE802.3at standard

> Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards

> Support command-line interface

Technical Specification

Model DH-PFS4420-16GT-250

Ethernet Port 16*10/100/1000 Base-T(PoE power supply)

4*1000 Base-X

PoE Power consumption Each power ≤30W

Total≤250W

PoE Protocol IEEE802.3af

IEEE802.3at

PoE Budget 250W

Switching Capacity 56Gbps

Packet Forwarding Rate 29.76Mpps

Packet Buffer Memory 4.1Mb

Application Humidity 10%-90%

Power AC 100~240V

Lightning Protection Common Mode 2KV

Differential Mode 500V

Working Temperature ﹣10℃~55℃

Weight 3.75kg

Dimension(W×D×H) 440mmX260mmX44mm

Accessories

Model

PFT3950 1.25G 850nm,500m,LC, Multi-mode

PFT3960 1.25G 1310/1550nm,20km,LC, Single-mode

PFT3970 1.25G 1550/1310nm,20km,LC, Single-mode

Service Characteristics

System Username / password: admin/admin

IP Address :192.168.1.110/24

MAC Table 8K

VLAN 802.1Q

Port Aggregation Manual aggregation

Mirroring Support many-to-one port mirroring

Flow Control Support half-duplex based on back pressure type control

Support full duplex based on PAUSE frame

Multicast IGMP Snooping

Quality of Service Support Diff-Serv QoS

Each port support 4 output queue

Support 802.1p/DSCP priority mapping

Security Features Hardware supports IP+MAC binding based on port

Support IP source address protection

Support ARP detection

System Maintenance Support the configuration file upload/download

Support the updated packet upload

Support system logs

Network Management WEB(http protocol)
