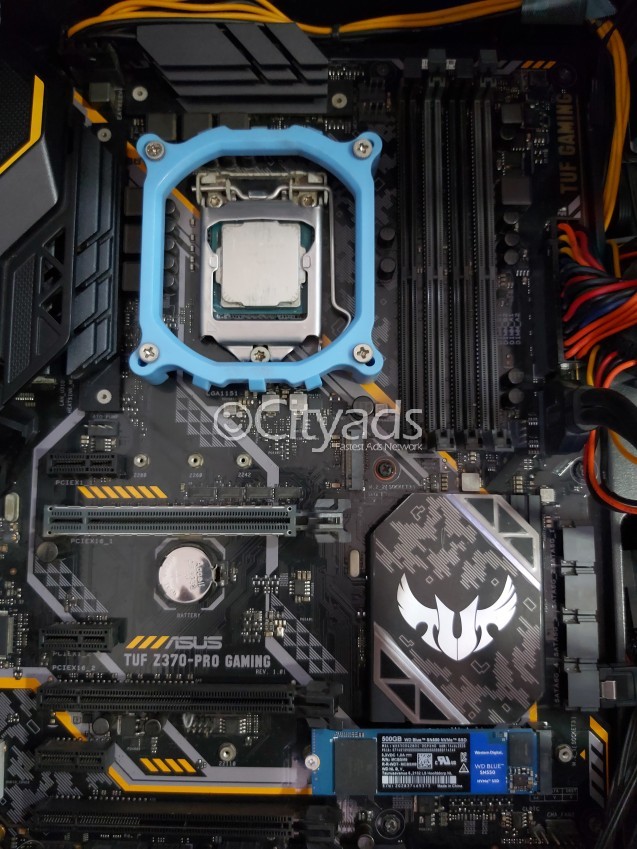

Asus Tuff pro gaming z370

TUF Z370-PRO GAMING

ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

1. Supports Intel® Rapid Storage Technology for CPU-attached Intel PCIe Storage, availability targeted with Intel® Rapid Storage Technology 16(Intel® IRST 16).

2. The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device.

Intel® Socket 1151 for 8th Generation Core™ Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0

4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)

Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DVI-D ports

Supports NVIDIA® 2-Way SLI™ Technology Supports AMD 2-Way CrossFireX Technology Supports NVIDIA® 2-Way SLI™ Technology Supports AMD 2-Way CrossFireX Technology

2 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x4+x4, x8+x4+x4/x0) 1 x PCIe 3.0/2.0 x16 (max at x2 mode) 3 x PCIe 3.0/2.0 x1

1 x M.2 Socket 3*2, , with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready

ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, teal blue, Type-A) Intel® Z370 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at back panel, , 4 at mid-board) Intel® Z370 Chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)

Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
